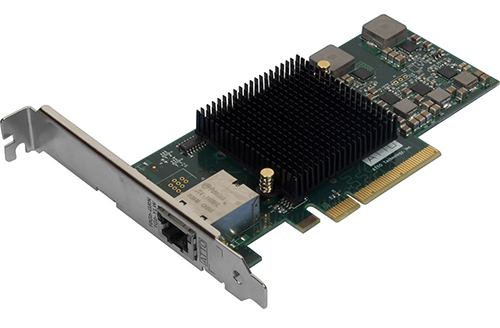

ATTO FastFrame NT11
Single Port 10GBASE-T PCIe 2.0 Network Adapter

ATTO FastFrame NT11

ATTO Technology Products
ATTO FastFrame Ethernet NICs
USA: FREE Ground ShippingATTO FastFrame NT11 Single Channel 10GbE to x8 PCIe 2.0 Ethernet Adapter, Low Profile, RJ45 Interface
#FFRM-NT11-000
Our Price: $595.00

Click here to jump to more pricing!

Overview:

FastFrame NT11 10GBASE-T NIC offers speeds 47% faster than Fibre Channel with the structured Ethernet wiring and patch panels familiar to networking professionals. Cards, ports & cabling are backwards compatible to GigE— and you can run 10Gb Ethernet over Cat6A cabling that's already in place. FastFrame 10GBASE-T NICs provide high performance connectivity without the cost and compatibility concerns of proprietary optics and twin-ax direct connect cables.

FastFrame NT11 provides lossless Ethernet (CEE) and Data Center Bridging (DCB) support provides improved iSCSI quality of service, for reliable access to storage. This enhanced iSCSI support makes FastFrame the ideal solution for, wiring closet/small data center installations, an existing NAS-dominated network, want to add network access to block data for remote offices, or to support IP routing over longer distances and ease installation and management for local IT admins.

ATTO FastFrame 10GBASE-T NICs Adapters

Use up to 30% less power while taking advantage of ATTO Technology's proprietary Advanced Data Streaming (ADS) latency management for smoother streaming and reduced risk of dropped frames with FastFrame 10Gb Ethernet network interface cards (NICs).

Technical Features

  • Single- and daul-port configurations
  • 10GBASE-T, RJ45 connectivity
  • High-performance x8 PCIe 2.0 bus
  • Low profile and standard height brackets
  • Up to 10Gb/s throughput per port
  • Auto negotiation at 10GBASE-T, 100Base-T, and 100Base-TX speeds for backwards compatibility. Supports phased upgrade to 10Gb Ethernet
  • Use Cat6a or Cat7 cable for 10BASE-T connections up to 100 meters
  • Supports Data Center Bridging for improved iSCSI quality of service
  • ATTO Xtend SAN iSCSI initiator for macOS provides a complete iSCSI solution
  • Driver support for Windows, Linux and macOS operating systems
  • TCP, UDP, IPv4 and IPv6 checksum offloading, IPsec offloading and Tx/TCP segmentation offloading
  • Load-balancing on multiple CPUs
  • Minimized interrupts for low latency

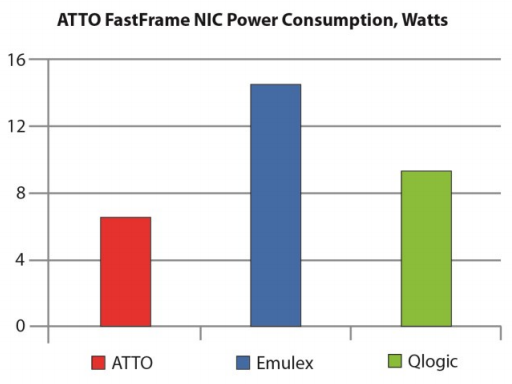

ATTO FastFrame not just offers superior throughput, but also offers Industry's lowest power consumption, only 5.9 Watts for a dual-port 10Gb NIC
ATTO FastFrame not just offers superior throughput, but also offers Industry's lowest power consumption, only 5.9 Watts for a dual-port 10Gb NIC

Flexible Solutions Built on Industry Proven Technology

FastFrame 10GbE NICs simplify networking administration, integrate seamlessly into existing environments and reduce the total cost of ownership by improving connection bandwidth and eliminating redundant network infrastructure components.

FastFrame NICs provide the most flexible and scalable connectivity solutions for today's data center environments. Connect clients to servers, clients, to NAS; and by leveraging support for iSCSI initiators, support for connecting into iSCSI storage area networks (SANs).

ATTO's High-Bandwidth, Low-Latency Leadership

ATTO engineers FastFrame NICs for stable, near-line-speed data rates across broad range of file sizes for predicatable network performance while minimizing CPU utilization.

Low Power Utilization for Lower Cost and Less Heat

With FastFrame, single-chip integration results in lower power utiltization with a low-profile form factor, in single- and dual-port configurations. FastFrame draws up to 30% less power than competing solutions. A lower power rating means lower energy costs, lower data center maintenance fees and less heat to dissipate.

macOS, Windows, and Linux Support

Long committed to the Apple market, ATTO leads in high-performance I/O connectivity for macOS environments. ATTO also offers Xtend SAN, an iSCI initiator for macOS, to complete the solution. Acquire your NICs for multiple OS environments from a single source - one familiar with the data-intensive demands of content editing.

Applications

FastFrame's Ethernet with iSCSI support makes it the ideal solution for:

  1. Wiring closet/data center installations where the customer prefers to use Ethernet rather than Fibre Channel to access storage
  2. Adding network access to block data to an existing network area storage (NAS) network
  3. Remote offices, to support IP routing over longer distances and ease installations and management for local IT administrators
  4. Data-intensive environments for which gigabit Ethernet's performance has proven insufficient and consistent, predictable network performance is required

Design:

Powerful solution. Powerful design.

Based on industry-standard Ethernet technology, ATTO FastFrame NICs are available in single, dual, and quad-port configurations. FastFrame has been proven to deliver high performance I/O connectivity and lossless Ethernet support for improved iSCSI block storage access as well as optimal network traffic.

Connectivity across campusConnectivity across campus

ATTO FastFrame NICs make it possible to setup virtual networks across campus or the data center. Using optical fiber and a transceiver (SFP+), Ethernet packets can now travel up to 400m without sacrificing speed or data quality.

Flexible connectivity

ATTO FastFrame NICs provide the most flexible and scalable connectivity for today's data center environments. By leveraging data center bridging and support for software iSCSI initiators, FastFrame network adapters offer the ability to support both local and storage area networks.

Meet the demands of 6K Today.

Migrate to higher performance levels with FastFrame 40GbE and 10GbE NICs. FastFrame is used for demanding applications using streaming media like post production and video/sound editing, and other rich media and data intensive applications.

Performance:

RoCEData transfers just got faster.

ATTO 40GbE NICs feature industry-leading latency management with RoCE. It has the benefit of eliminating the intermediate step of utilizing the CPU to transfer data and enabling near line-rate performance.

The smoothest and most reliable data transfers

Sometimes it is not just how fast you move the data, but how well you can manage the flow of that data to reduce network collisions. With distinctive latency-management features such as ATTO Advanced Data Streaming (ADS), FastFrame adapters deliver better overall performance across all of your applications while reducing your CPU utilization significantly.

Advanced Data Streaming (ADS)

Do more. Save more.

ATTO FastFrame NICs are the lowest energy consuming cards on the market and provide a higher ROI by transferring more data per dollar spent on power than the competition. One 40GbE NIC can do the same amount of work as four 10GbE cards with less power consumption and overhead.

Low Power Consumption

Interoperability:

High compatibility and broad interoperability

ATTO FastFrame NICs work wherever you need them: in workstations, servers, and data center racked servers. They are supported by a full suite of software drivers for macOS, Windows and multiple Linux distributions.

macOS, Windows and Linux

Specifications:


  FFRM-NT11 FFRM-NT12
ATTO FastFrame FFRM-NT11 FFRM-NT12
Ports Single Dual
Bus Characteristics x8 PCIe 2.0 x8 PCIe 2.0
Connector RJ-45 RJ-45
Form Factor Full Height, Low Profile Full Height, Low Profile
Max Transfer Rate 1.25 GB/s 2.5 GB/s
Key Features
  • Intel X450 10GBASE-T Ethernet controller
  • Data rate per ports: 10GbE, 1 GbE, 100mb/s
  • 10GbE TCP, UDP, IPv4 and IPv6 checksum offloading
  • Tx/TCP segmentation offload (large send offload - LSO)
  • Low latency interrupts
  • Interrupt coalescing/moderation
  • Data center bridging (DCB) support
  • Header splits and multiple receive queues
  • Direct cache access (DCA) eliminate cache misses and reduces CPU load
  • Interrupt levels INTA, MSI, MSI-X
  • 802.1p - Priority Encoding
  • 802.1q - VLAN Tagging
  • Priority flow control (802.1Qbb)
  • DCBX protocol (802.1Qaz)
  • Plug and play specification support
  • Advanced packet filtering
  • VLAN support with tag insertion and stripping
Cable Lengths and Type
  • Ethernet 10GBASE-T connectors
  • Cat6a and Cat7 Ethernet cable for 10BASE-T connections up to 100 meters
  • Cat6 Ethernet cable for 10BASE-T connections up to 55 meters
  • Cat5e Ethernet cable for 100Base-T and 100Base-TX connections up to 100 meters
  • External Connectivity
  • Dual speed 10Gb/s, 1Gb/s, 100Mb/s two or one RJ-45 connectors
  • Easy-to-install full height and low-profile connection bracket for the single- and dual-port cards
  • 2 LED indicators per port
  • LED indicators: LINK (solid), ACTIVITY (blinking), LINK SPEED (green = 10BASE-T, yellow = 1000BASE-T, off = 100BASE-Tx)
Theoretical Max Performance
  • Interface Transfer Rate/Port = 10Gb/s
  • Max Throughput/Port = 1000 MB/s
  • Max Adapter Throughput: NT12 = 2000 MB/s, NT11= 1000 MB/s
Advanced Software Features
  • Adaptive load balancing
  • Teaming support
  • PCIe Hot Plug/Active peripheral interconnect
Management Tools Easy system monitoring with Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) Statistic Counters
Network Standards
  • IEEE802.3ae, IEEE802.1p, IEEE802.1Q, IEEE802.3, IEEE802.3x
  • 802.1 Qaz: Enhanced Transmission Selection
Bus Specifications
  • X8 PCI Express 2.0
  • Supports PCI Express Base 2.0 and CEM Spec 2.0
Operating System Support
  • Windows Server
  • Windows
  • macOS
  • SUSE Linux Enterprise Server (SLES)
  • Red Hat Enterprise Linux (RHEL)
Operating Temperature 0°-55° C (32°F to 131°F)
Non-Operating Temperature -40°-70° C (-40°-157° F)
Airflow required 200 lf/m at 55°C or 100 lf/m at 40°C
Humidity 5%-90% non-condensing
Typical power consumption <8.8W <13.6W
Compliance
  • EN60950-1: 2001, IEC 60950-1: 2001
  • RoHS
Warranty Three-year standard product warranty

Video:

The ATTO Difference - Advanced Data Streaming

Latency management technology is built into ATTO host bus adapters (HBAs) and RAID hardware. Advanced Data Streaming manages latency by providing controlled acceleration for smooth data streaming to maintain the highest consistent performance. ADS ensures best-in-industry data transfers for high-bandwidth applications.



Documentation:

Download the ATTO FastFrame 10GBASE-T NICs Datasheet (.PDF)
